Abstract：Multi channels energy meter can realize up to 12 three-phase or 36 single-phase direct access measurement or 12 three-phase measurement through current transformers. This series energy meters are favored by communities, schools, enterprises due to their high accuracy, centralized installation, centralized management and high installation flexibility. This article introduces the application of Acrel multi channels energy meters in a company in Poland.
Keywords: Multi channels energy meter
01
Project Overview
The customers need 2 channels three-phase direct access and 2 channels three-phase secondary access measurement. Acrel ADF400L series energy meters meet the user's application and conditions.
02
Acrel Energy Management System
Acrel energy management system is widely used in schools, commercial buildings, office buildings, industrial and mining enterprises, road traffic projects, etc.

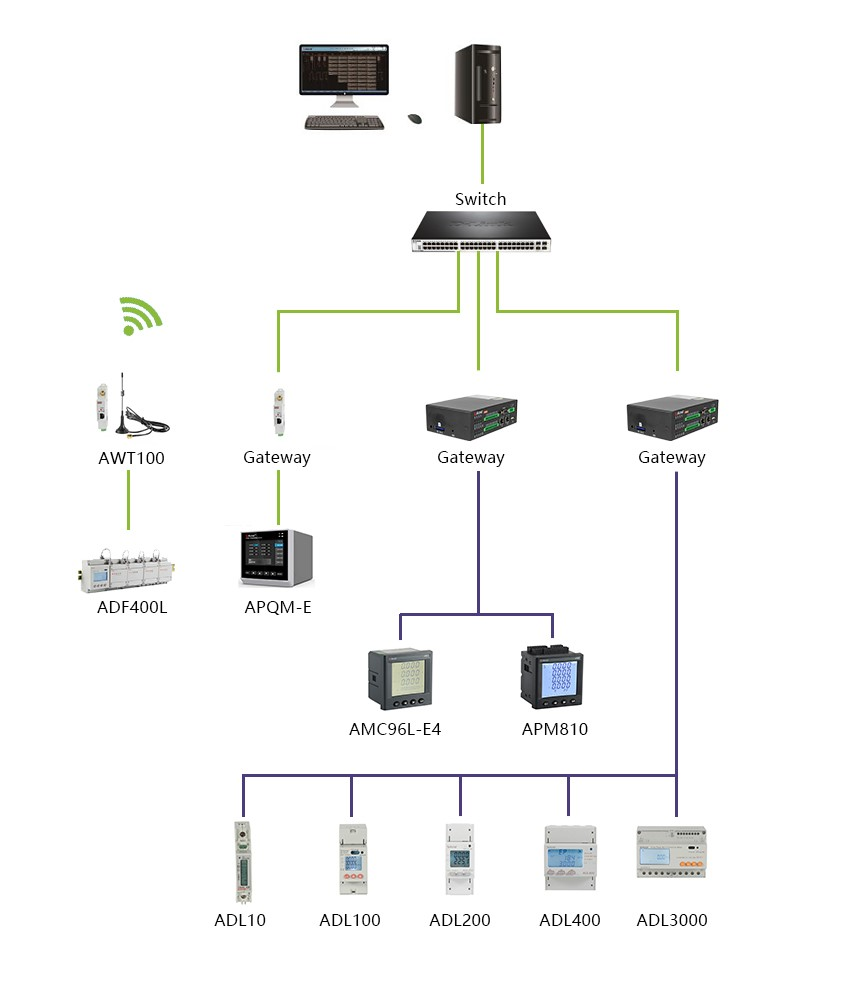

2.1 Structure
2.2 Functions
Overview of Energy Consumption
Statistics of Energy Consumption
Data Reading
Analysis Report on Energy Consumption

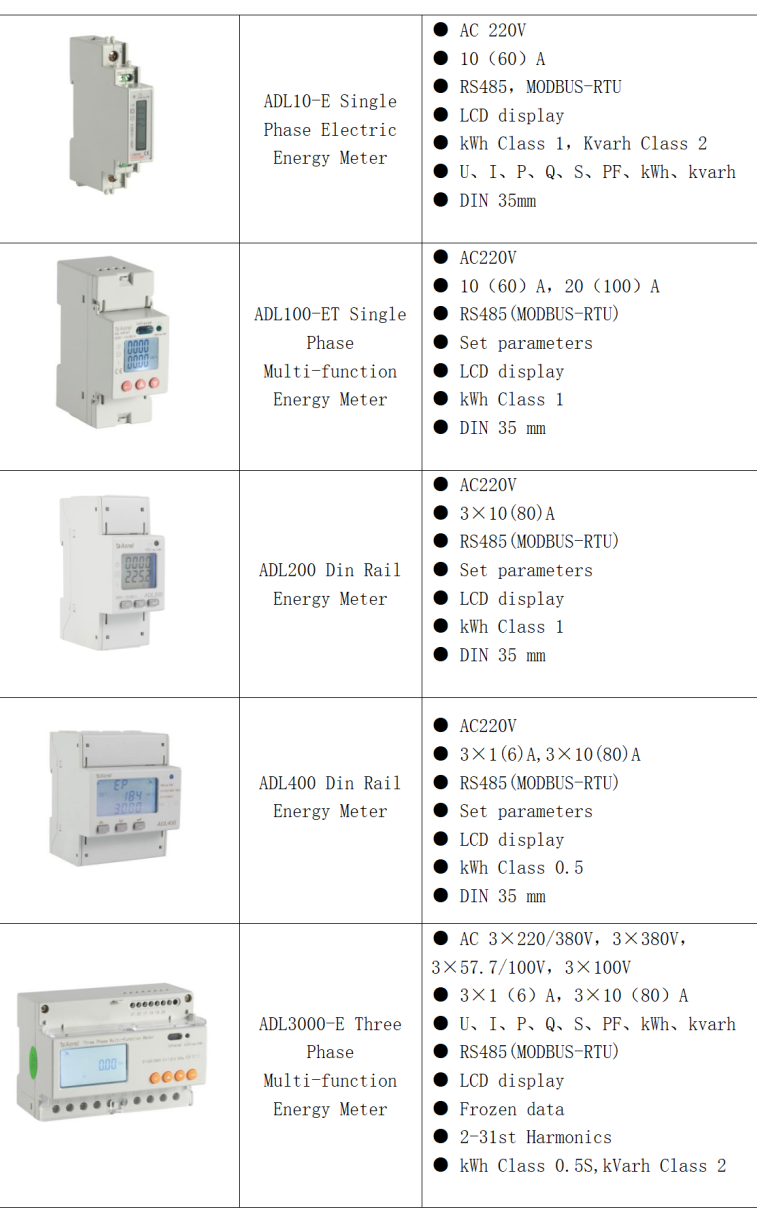

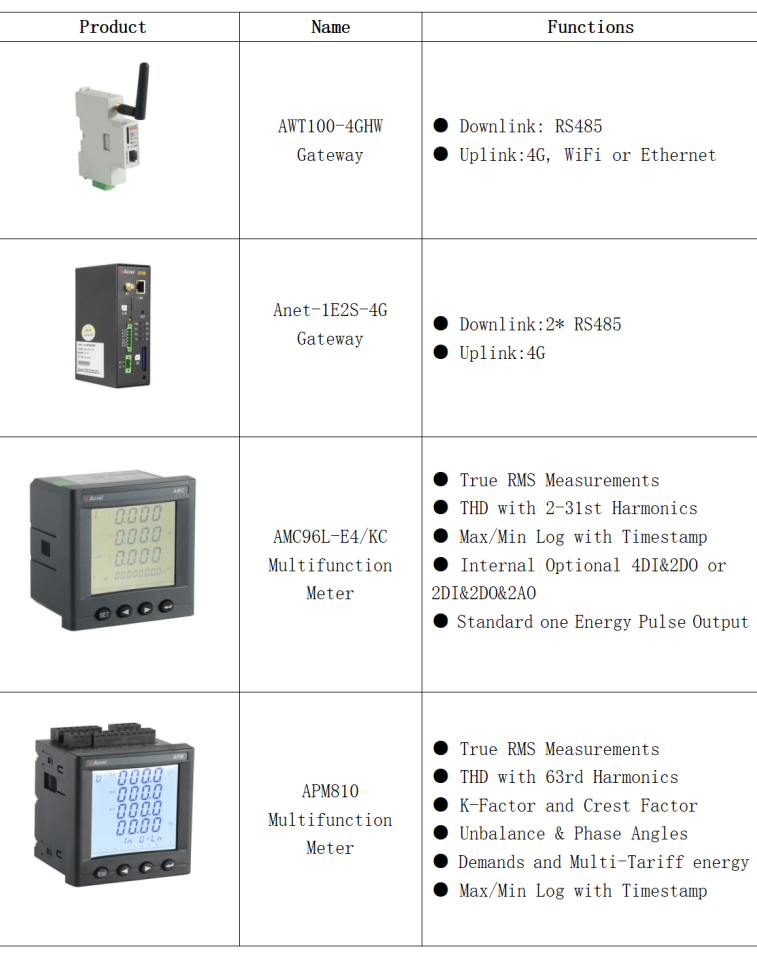

2.3 Product Selection
03

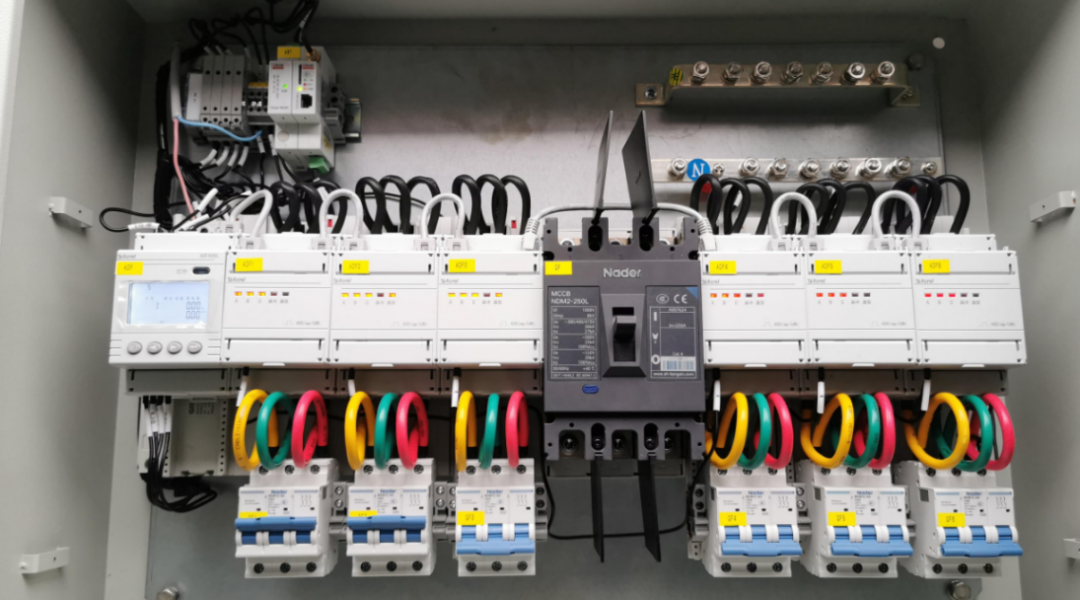

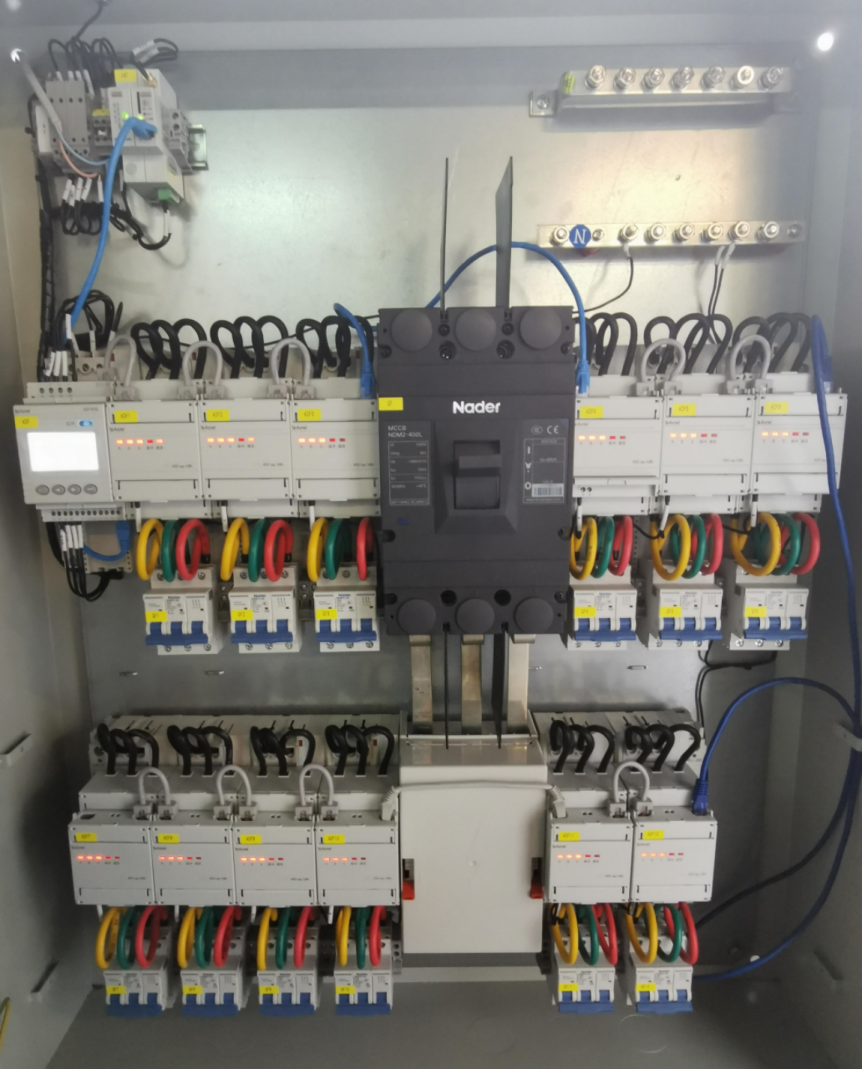

Photos on site
